Mitsubishi Electric

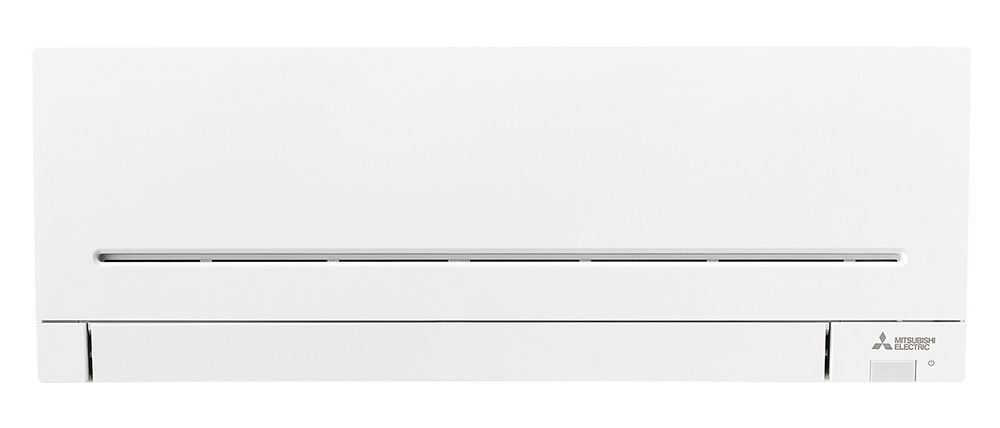

MSZ-AP25VG(K)D

Heating capacity: 3.2 kW
Cooling capacity: 2.5 kW
Dimension: 798 x 219 x 299 mm

MSZ-AP35VG(K)D

Heating capacity: 3.7 kW
Cooling capacity: 3.5 kW
Dimension: 798 x 219 x 299 mm

MSZ-AP42VG(K)D

Heating capacity: 5.4 kW
Cooling capacity: 4.2 kW
Dimension: 798 x 219 x 299 mm

MSZ-AP50VG(K)D

Heating capacity: 6.0 kW
Cooling capacity: 5.0 kW
Dimension: 798 x 219 x 299 mm

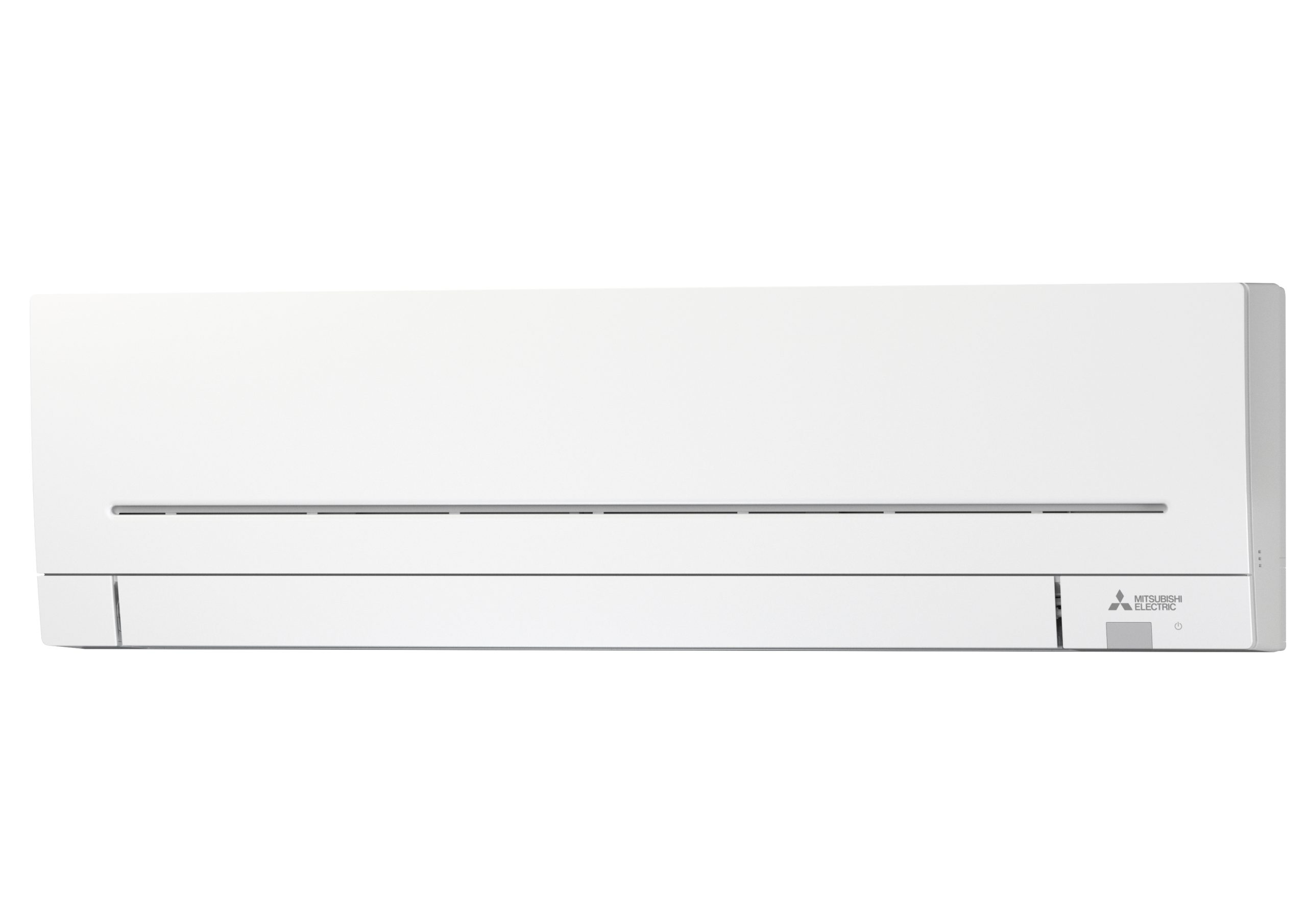

MSZ-AP60VG(K)D

Heating capacity: 6.8 kW
Cooling capacity: 6.0 kW
Dimension: 1100 x 257 x 325 mm

MSZ-AP71VG(K)D

Heating capacity: 8.0 kW
Cooling capacity: 7.1 kW
Dimension: 1100 x 257 x 325 mm

MSZ-AP80VG(K)D

Heating capacity: 9.0 kW
Cooling capacity: 7.8 kW
Dimension: 1100 x 257 x 325 mm

AP Mini Series

MSZ-AP20VGD

Heating capacity: 2.5 kW
Cooling capacity: 2.0 kW
Dimension: 760 x 178 x 250 mm

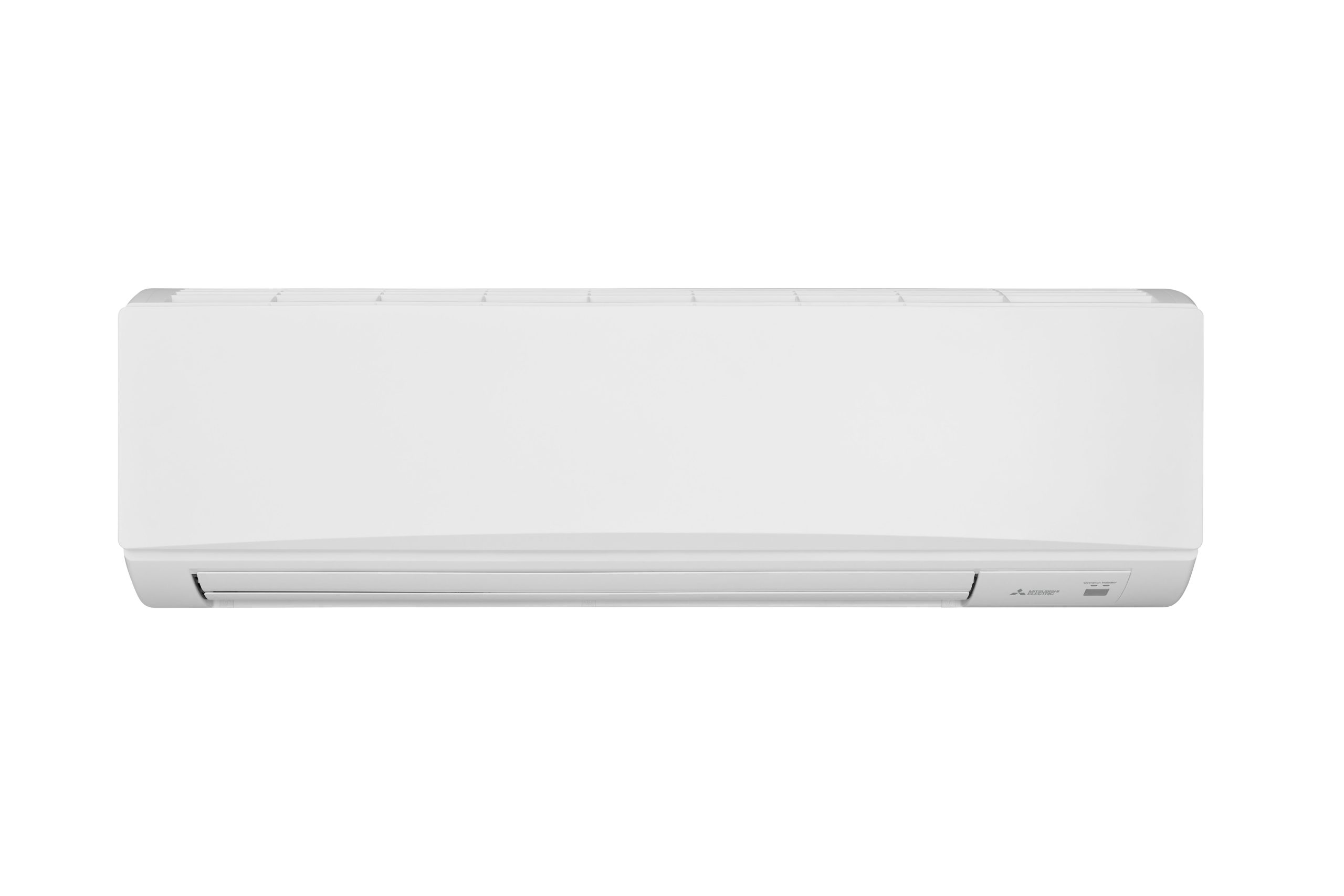

Large Capacity AS90 High Wall

MSZ-AS90VGD

Heating capacity: 10.3 kW
Cooling capacity: 9.0 kW
Dimension: 1170 x 295 x 365 mm

Black Diamond Series

MSZ-LN25VGV HyperCore

Heating capacity: 3.2 kW
Cooling capacity: 2.5 kW
Dimension: Indoor: 890 x 233 x 307 mm Outdoor: 800 x 285 x 550 mm

MSZ-LN35VGV HyperCore

Heating capacity: 4.0 kW
Cooling capacity: 3.5 kW
Dimension: Indoor: 890 x 233 x 307 mm Outdoor: 800 x 285 x 550 mm

MSZ-LN50VGV HyperCore

Heating capacity: 6.0 kW
Cooling capacity: 5.0 kW
Dimension: Indoor: 890 x 233 x 307 mm Outdoor: 840 x 330 x 880 mm

MSZ-LN60VGV

Heating capacity: 6.8 kW
Cooling capacity: 6.1 kW
Dimension: Indoor: 890 x 233 x 307 mm Outdoor: 840 x 330 x 880 mm

MSZ-LN25VGB HyperCore

Heating capacity: 3.2 kW
Cooling capacity: 2.5 kW
Dimension: Indoor: 890 x 233 x 307 mm Outdoor: 800 x 285 x 550 mm

MSZ-LN35VGB HyperCore

Heating capacity: 4.0 kW
Cooling capacity: 3.5 kW
Dimension: Indoor: 890 x 233 x 307 mm Outdoor: 800 x 285 x 550 mm

MSZ-LN50VGB HyperCore

Heating capacity: 6.0 kW
Cooling capacity: 5.0 kW
Dimension: Indoor: 890 x 233 x 307 mm Outdoor: 840 x 330 x 880 mm

MSZ-LN60VGB

Heating capacity: 6.8 kW
Cooling capacity: 6.1 kW
Dimension: Indoor: 890 x 233 x 307 mm Outdoor: 840 x 330 x 880 mm

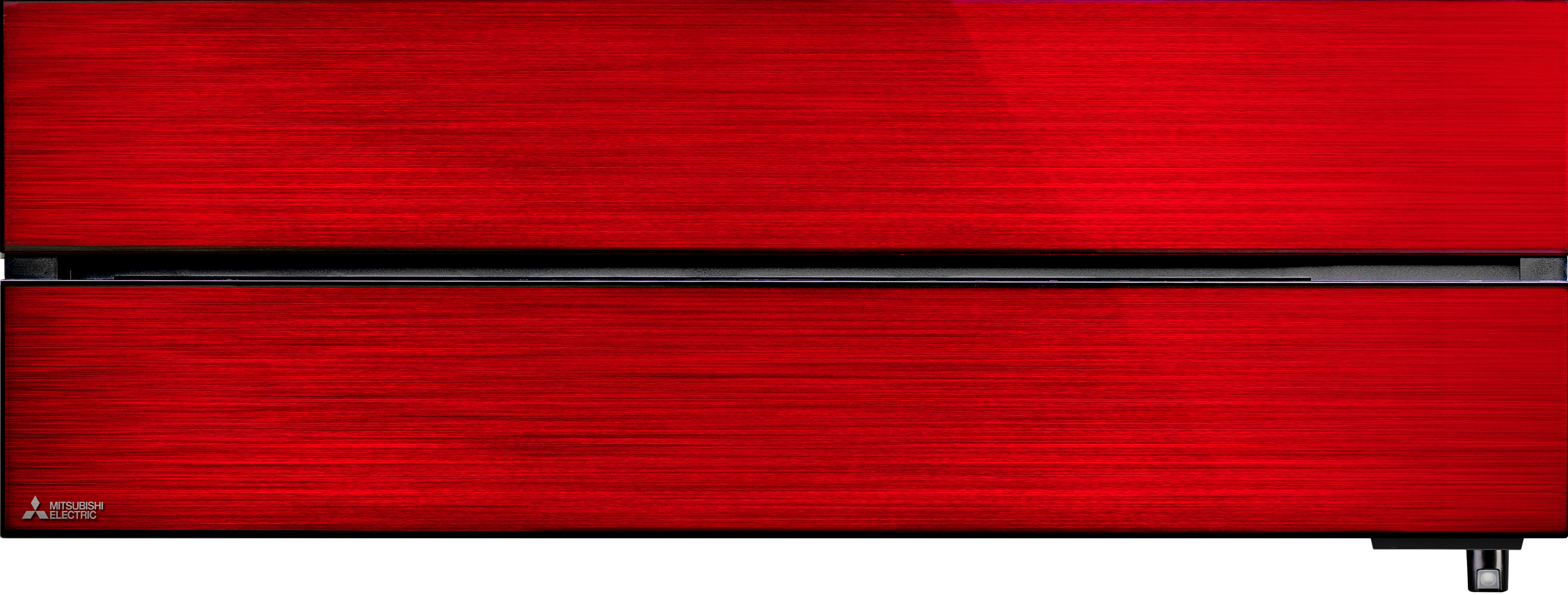

MSZ-LN25VGR HyperCore

Heating capacity: 3.2 kW
Cooling capacity: 2.5 kW
Dimension: Indoor: Indoor: 890 x 233 x 307 mm Outdoor: 800 x 285 x 550 mm

MSZ-LN35VGR HyperCore

Heating capacity: 4.0 kW
Cooling capacity: 3.5 kW
Dimension: Indoor: 890 x 233 x 307 mm Outdoor: 800 x 285 x 550 mm

MSZ-LN50VGR HyperCore

Heating capacity: 6.0 kW
Cooling capacity: 5.0 kW
Dimension: Indoor: 890 x 233 x 307 mm Outdoor: 840 x 330 x 880 mm

MSZ-LN60VGR

Heating capacity: 6.8 kW
Cooling capacity: 6.1 kW
Dimension: Indoor: 890 x 233 x 307 mm Outdoor: 840 x 330 x 880 mm

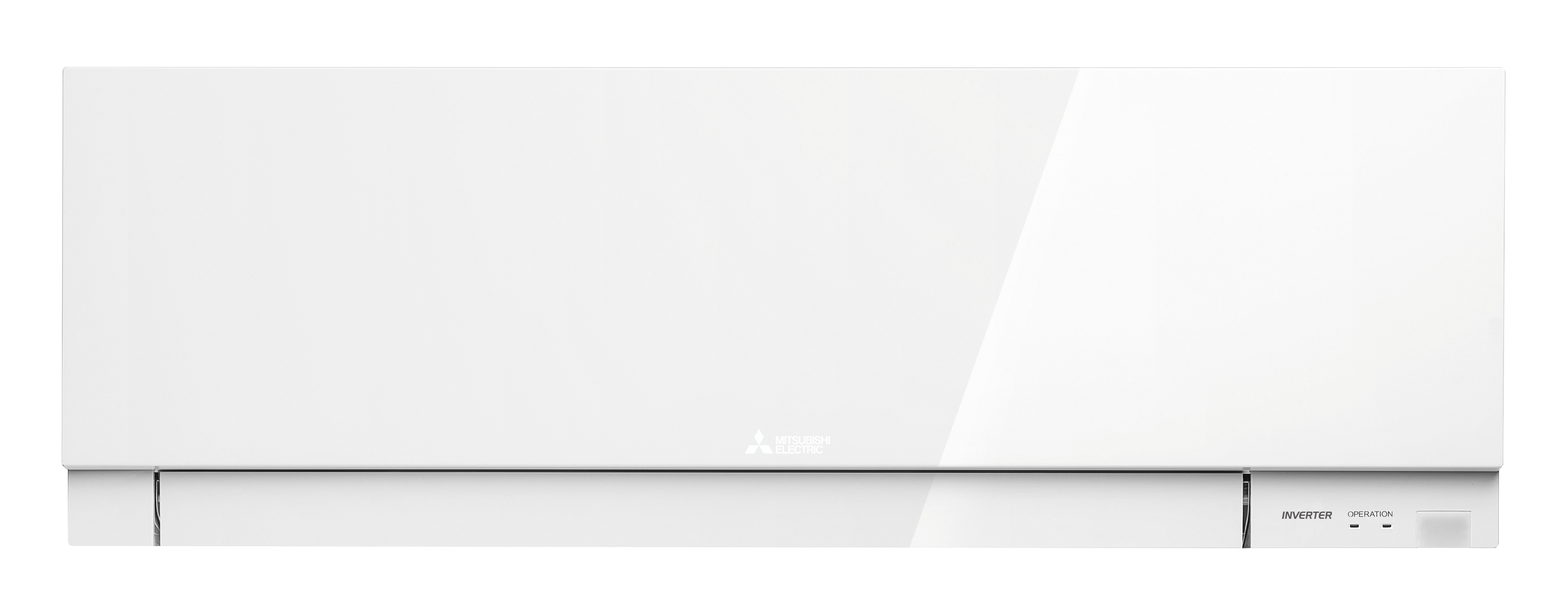

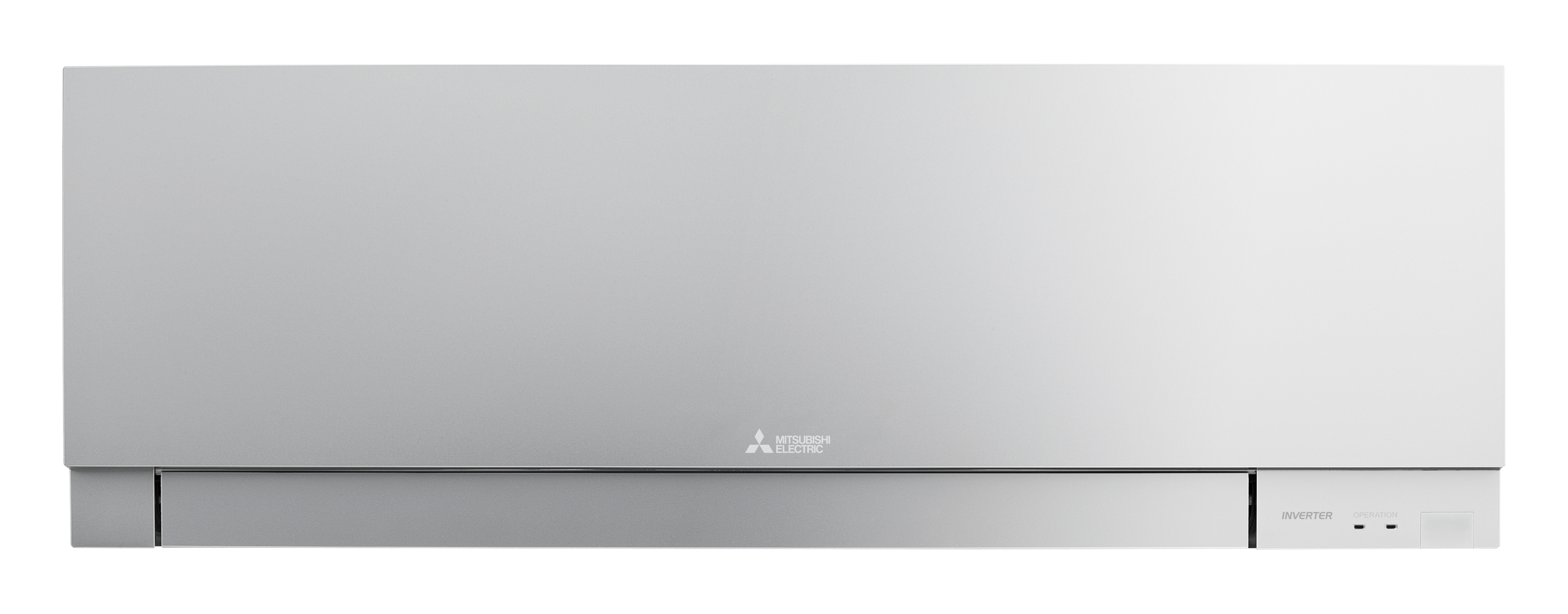

EcoCore EF Designer Series

MSZ-EF25VGKW/B/S

Heating capacity: 3.2 kW
Cooling capacity: 2.5 kW
Dimension: 885 x 195 x 299 mm

MSZ-EF35VGKW/B/S

Heating capacity: 4.0 kW
Cooling capacity: 3.5 kW
Dimension: 885 x 195 x 299 mm

MSZ-EF25VGKW/B/S

Heating capacity: 5.4 kW
Cooling capacity: 4.2 kW
Dimension: 885 x 195 x 299 mm

MSZ-EF50VGKW/B/S

Heating capacity: 5.8 kW
Cooling capacity: 5.0 kW
Dimension: 885 x 195 x 299 mm

Standard GS Series HIGH WALL HEAT PUMPS

MSZ-GS25VFD

Heating capacity: 3.1 kW
Cooling capacity: 2.5 kW
Dimension: 799 x 232 x 290 mm

MSZ-GS35VFD

Heating capacity: 3.7 kW
Cooling capacity: 3.5 kW
Dimension: 799 x 232 x 290 mm

MSZ-GS50VFD

Heating capacity: 5.5 kW
Cooling capacity: 5.0 kW
Dimension: 923 x 250 x 305 mm

MSZ-GS60VFD

Heating capacity: 6.6 kW
Cooling capacity: 6.0 kW
Dimension: 923 x 250 x 305 mm

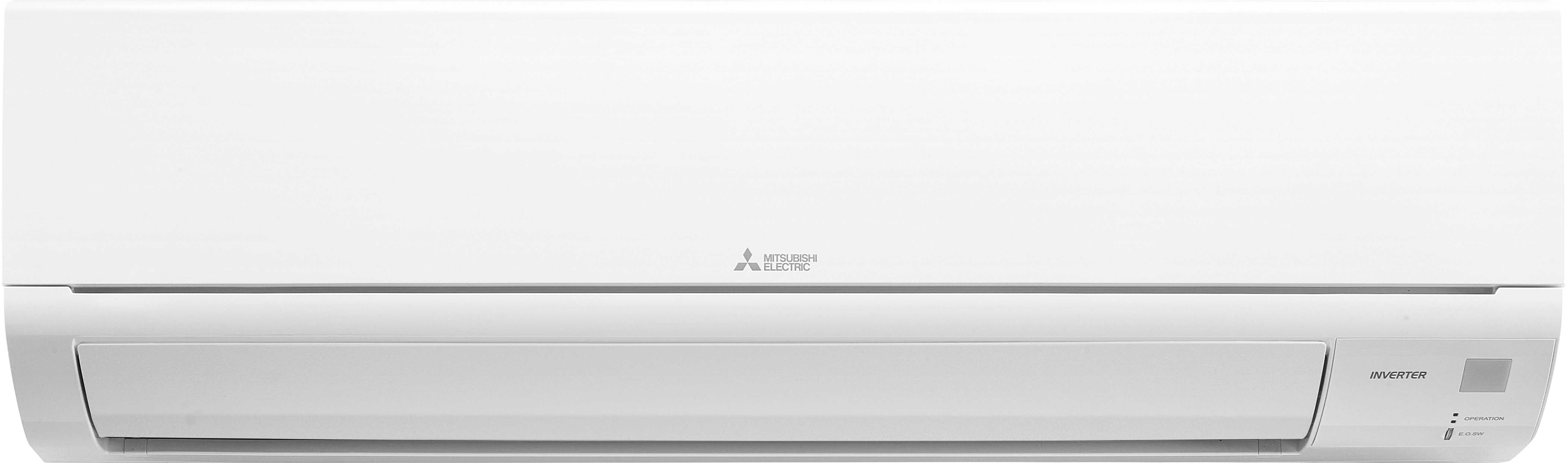

MSZ-GS71VFD

Heating capacity: 8.0 kW
Cooling capacity: 7.1 kW
Dimension: 1100 x 238 x 325 mm

MSZ-GS80VFD

Heating capacity: 9.0 kW
Cooling capacity: 7.8 kW
Dimension: 1100 x 238 x 325 mm

PKA Series (High Wall Series)

PKA-M71KAL

Heating capacity: 8.0 kW
Cooling capacity: 7.1 kW
Dimension: 1170 x 295 x 365 mm

PKA-M100KAL

Heating capacity: 11.2 kW
Cooling capacity: 10.0 kW
Dimension: 1170 x 295 x 365 mm

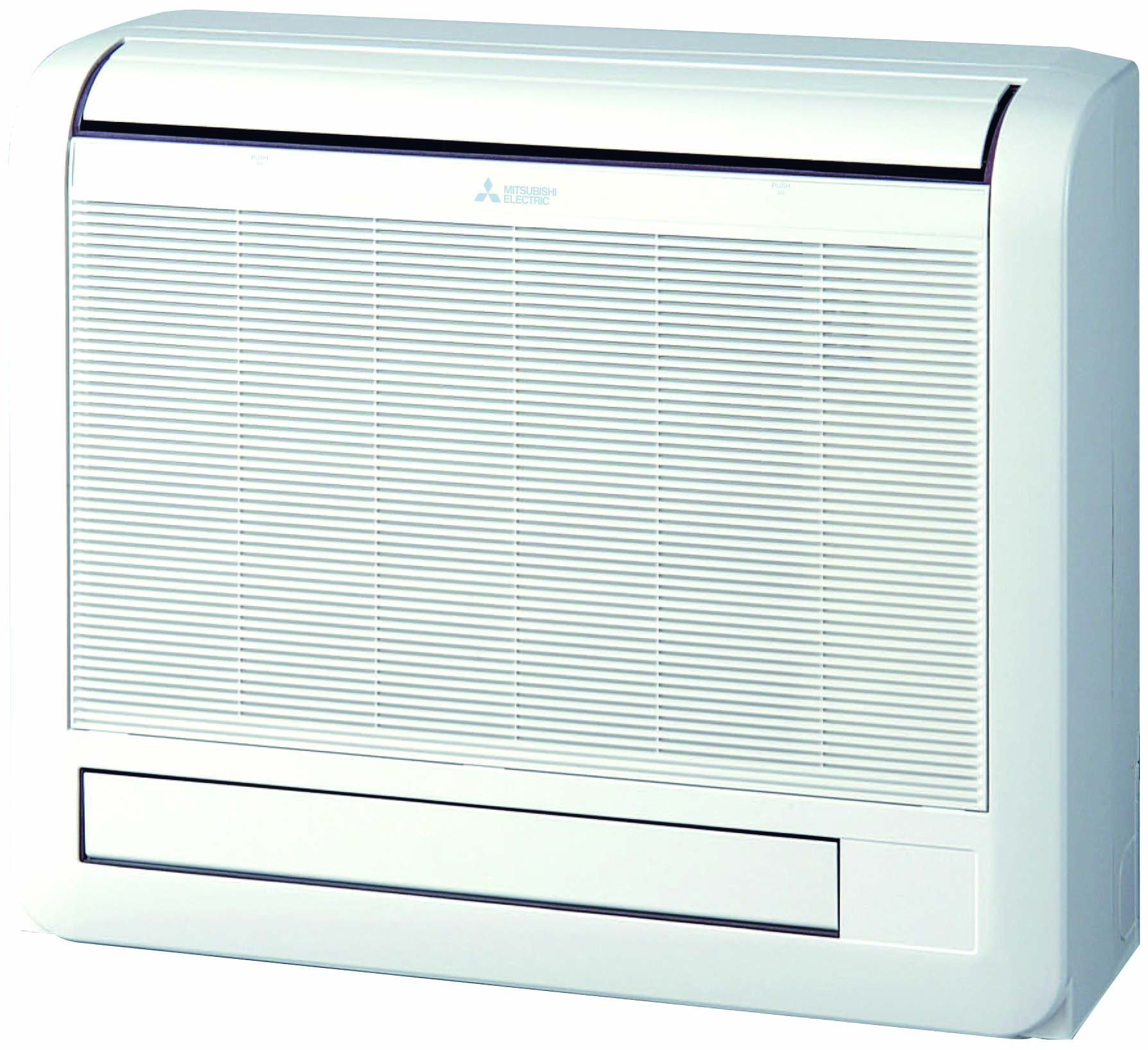

RapidHeat KW Series (Floor Console)

MFZ-KW25VG

Heating capacity: 3.4 kW
Cooling capacity: 2.5 kW
Dimension: 750 x 215 x 600 mm

MFZ-KW35VG

Heating capacity: 4.3 kW
Cooling capacity: 3.5 kW
Dimension: 750 x 215 x 600 mm

MFZ-KW50VG

Heating capacity: 5.8 kW
Cooling capacity: 5.0 kW
Dimension: 750 x 215 x 600 mm

MLZ Series (One-Way Ceiling Cassette)

MLZ-KP25VF

Heating capacity: 3.2 kW
Cooling capacity: 2.5 kW
Dimension: Unit: 1102 x 360 x 185 mm Panel: 1200 x 424 x 24 mm

MLZ-KP35VF

Heating capacity: 4.1 kW
Cooling capacity: 3.5 kW
Dimension: Unit: 1102 x 360 x 185 mm Panel: 1200 x 424 x 24 mm

MLZ-KP50VF

Heating capacity: 6.0 kW
Cooling capacity: 5.0 kW
Dimension: Unit: 1102 x 360 x 185 mm Panel: 1200 x 424 x 24 mm

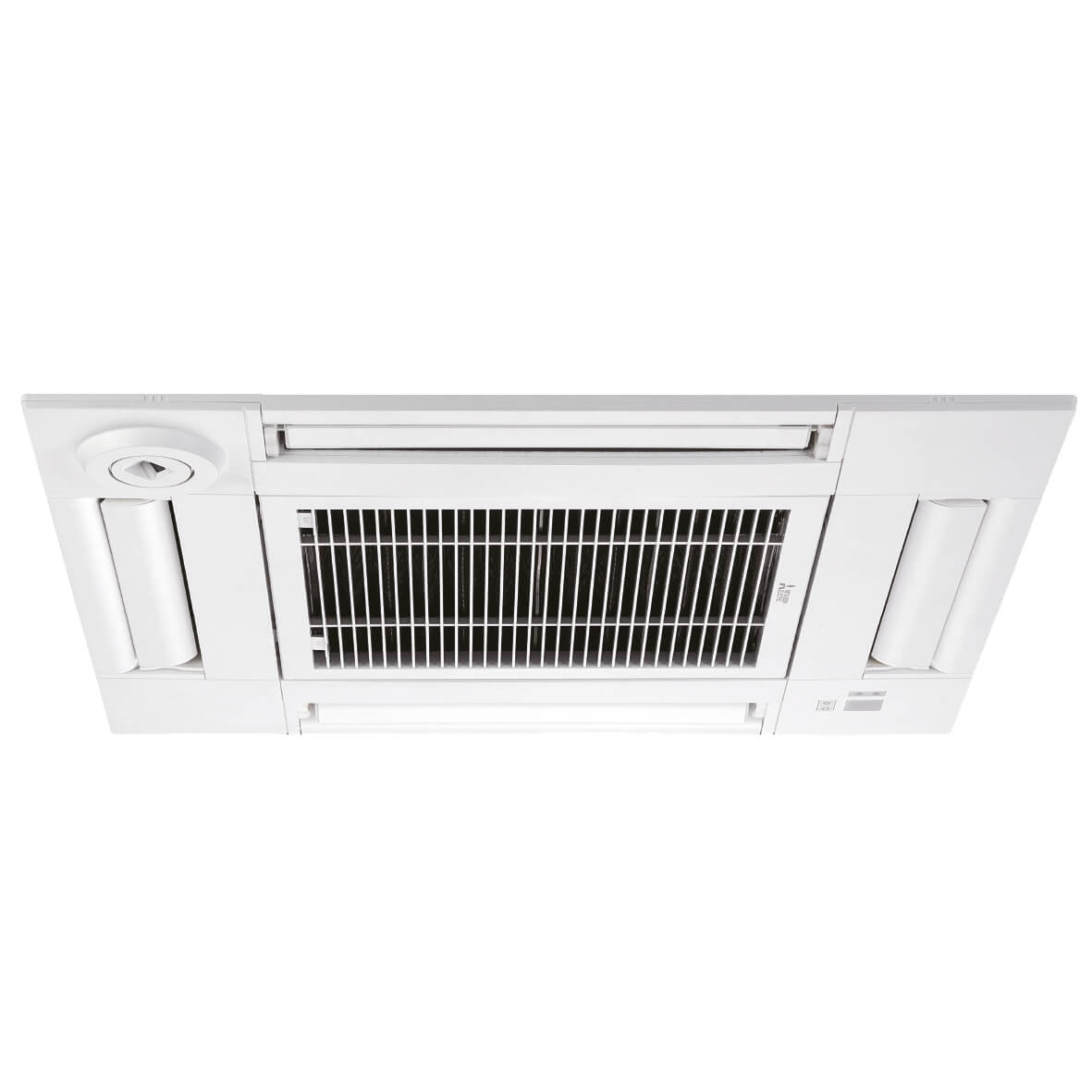

SLZ Series (Compact Ceiling Cassette)

SLZ-M25FA-A

Heating capacity: 3.0 kW
Cooling capacity: 2.5 kW
Dimension: Unit: 570 x 570 x 245 mm Panel: 625 x 625 x 10 mm

SLZ-M35FA-A

Heating capacity: 4.0 kW
Cooling capacity: 3.5 kW
Dimension: Unit: 570 x 570 x 245 mm Panel: 625 x 625 x 10 mm

SLZ-M50FA-A

Heating capacity: 5.0 kW
Cooling capacity: 5.0 kW
Dimension: Unit: 570 x 570 x 245 mm Panel: 625 x 625 x 10 mm

SLZ-M60FA-A

Heating capacity: 5.6kW
Cooling capacity: 6.0 kW
Dimension: Unit: 570 x 570 x 245 mm Panel: 625 x 625 x 10 mm

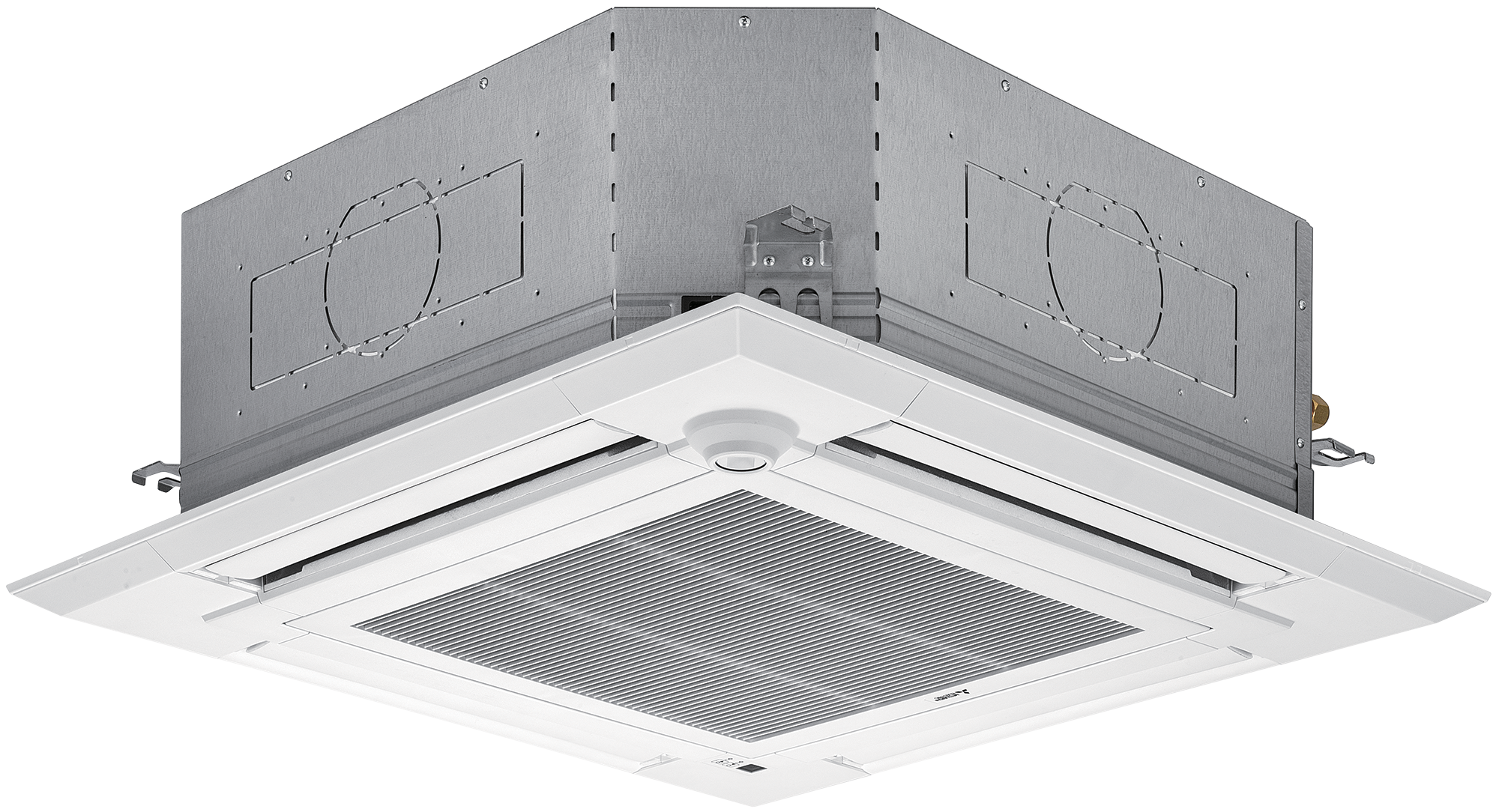

PLA Series (Ceiling Cassette)

PLA-M71EA-A

Heating capacity: 8.0 kW
Cooling capacity: 7.1 kW
Dimension: Unit: 840 x 840 x 258 mm Panel: 950 x 950 x 40 mm

PLA-M100EA-A

Heating capacity: 11.2 kW
Cooling capacity: 10.0 kW
Dimension: Unit: 840 x 840 x 298 mm Panel: 950 x 950 x 40 mm

PLA-M125EA-A

Heating capacity: 14.0 kW
Cooling capacity: 12.5 kW
Dimension: Unit: 840 x 840 x 298 mm Panel: 950 x 950 x 40 mm

PLA-M140EA-A

Heating capacity: 16.0 kW
Cooling capacity: 13.5kW
Dimension: Unit: 840 x 840 x 298 mm Panel: 950 x 950 x 40 mm

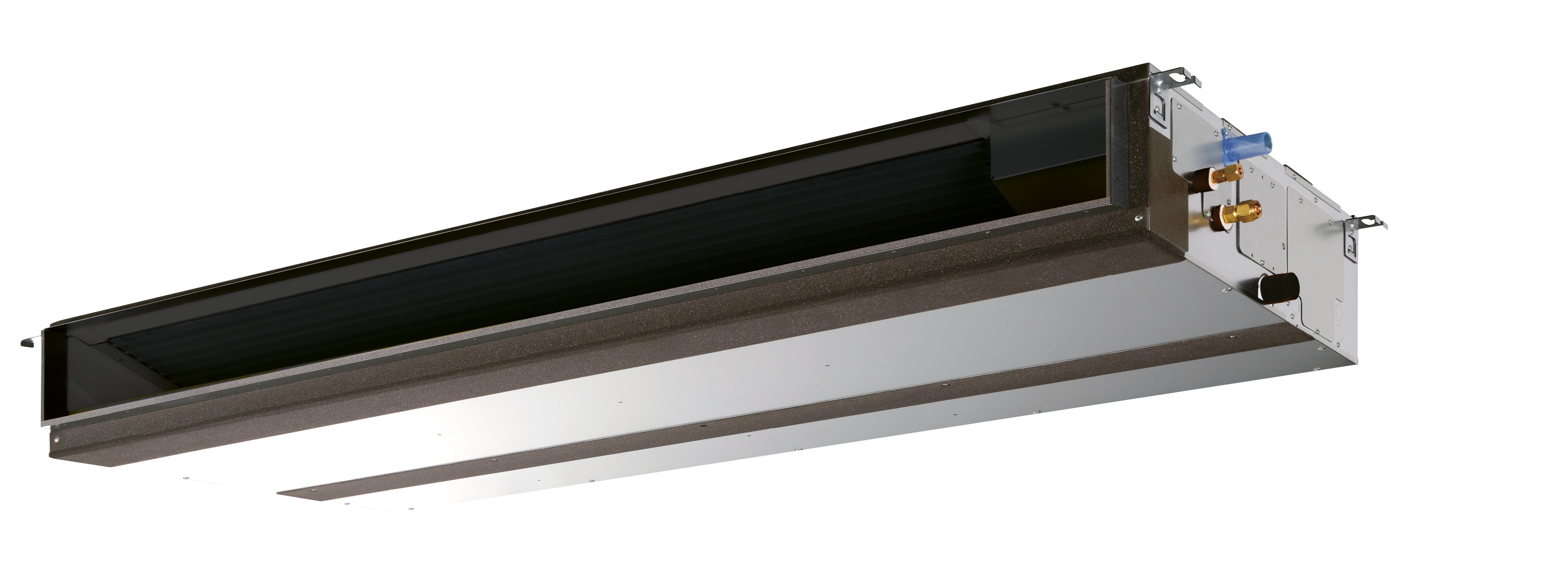

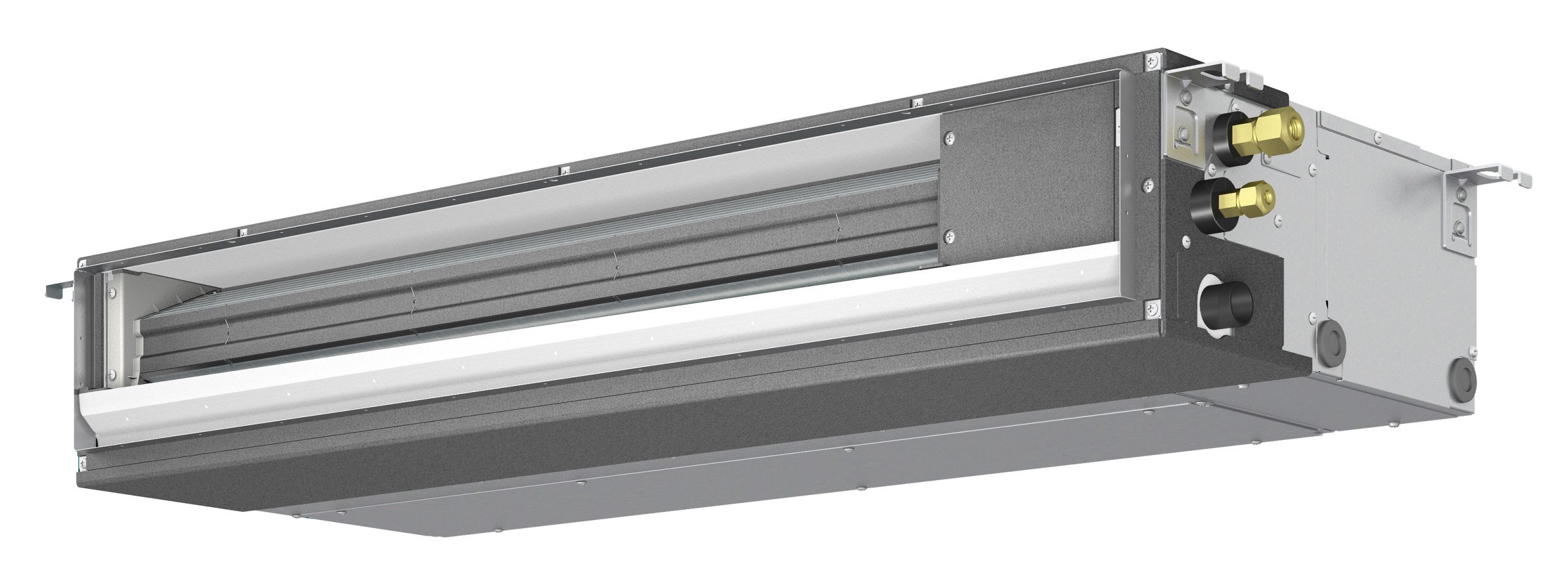

PEAD Series (Ducted)

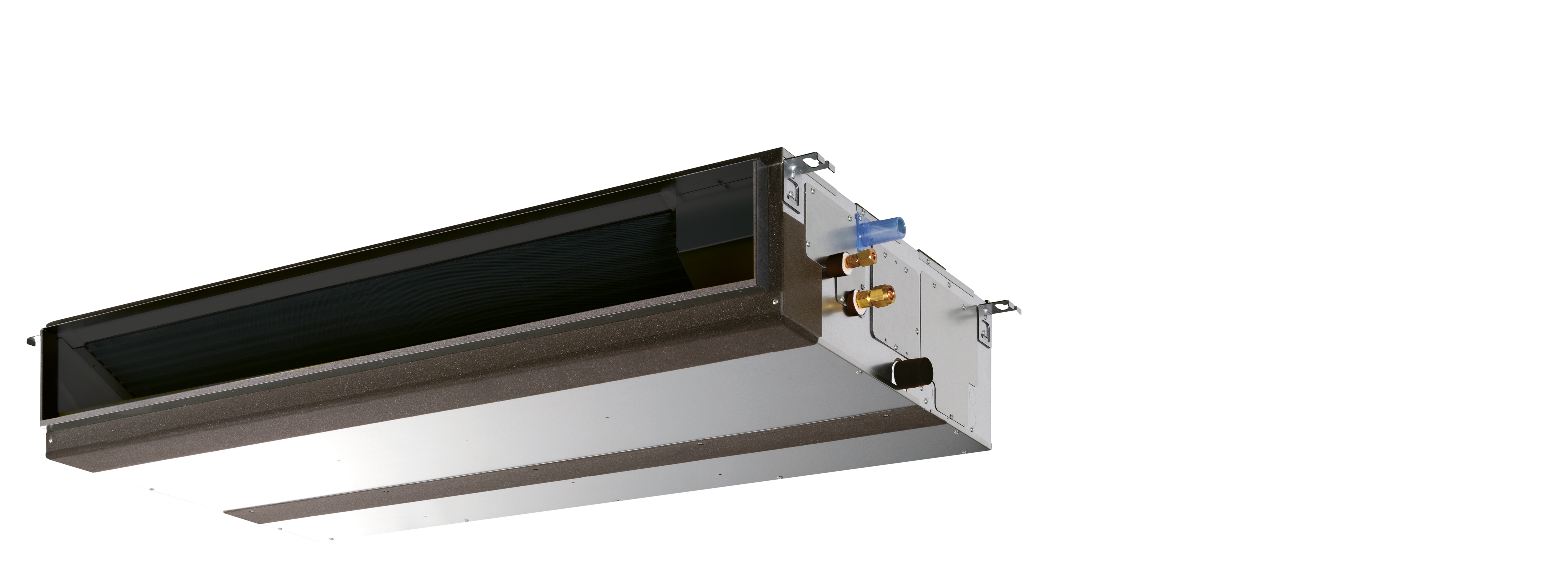

PEAD-M50JAA

Heating capacity: 6.0 kW
Cooling capacity: 5.0 kW
Dimension: 900 x 732 x 250 mm

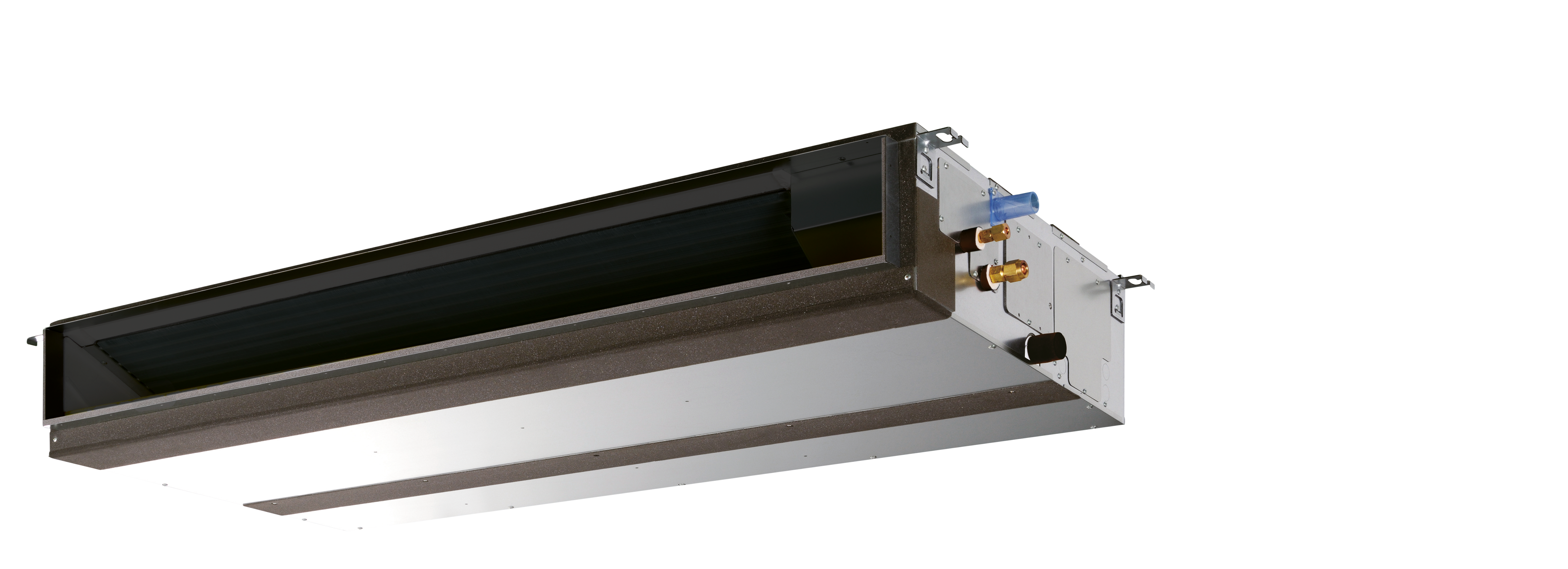

PEAD-M60JAA

Heating capacity: 7.0 kW
Cooling capacity: 6.0 kW
Dimension: 1100 x 732 x 250 mm

PEAD-M71JAA

Heating capacity: 8.0 kW
Cooling capacity: 7.1 kW
Dimension: 1100 x 732 x 250 mm

PEAD-M100JAA

Heating capacity: 11.2 kW
Cooling capacity: 10.0 kW
Dimension: 1400 x 732 x 250 mm

PEAD-M125JAA

Heating capacity: 12.5 kW
Cooling capacity: 14.0 kW
Dimension: 1400 x 732 x 250 mm

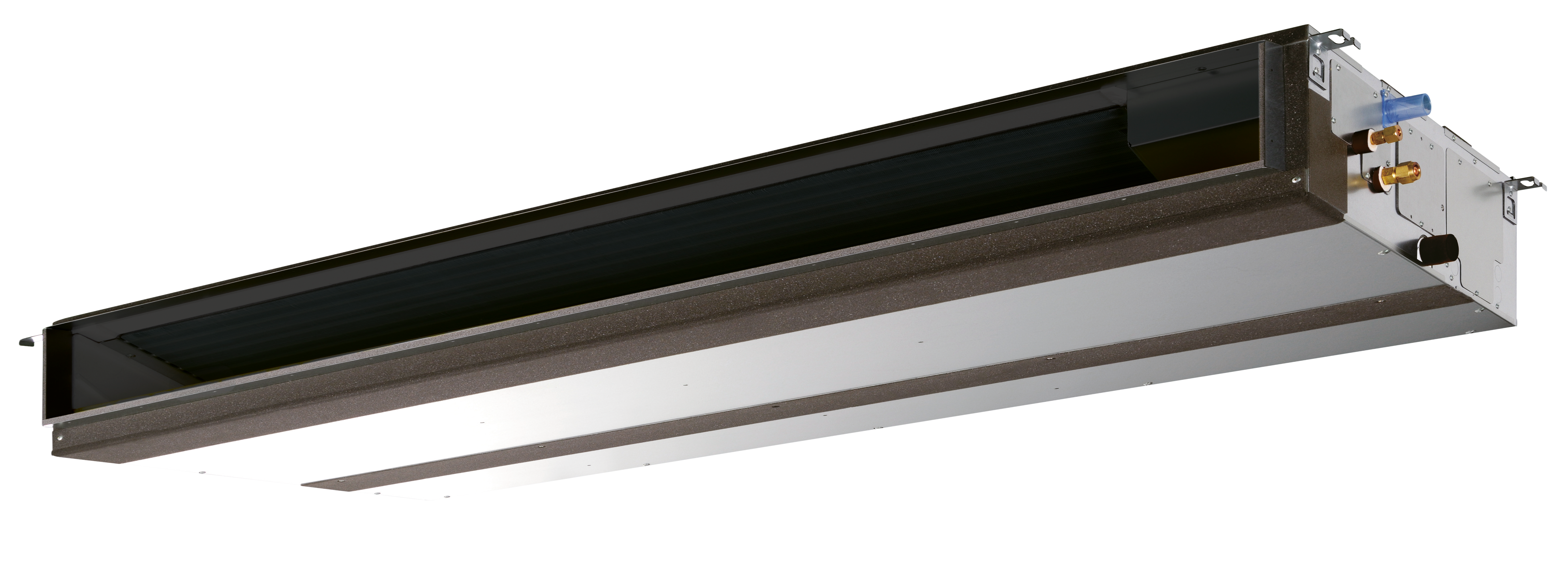

PEAD-M140JAA

Heating capacity: 14.0 kW
Cooling capacity: 16.0 kW
Dimension: 1600 x 732 x 250 mm

PCA Series (Under-Ceiling)

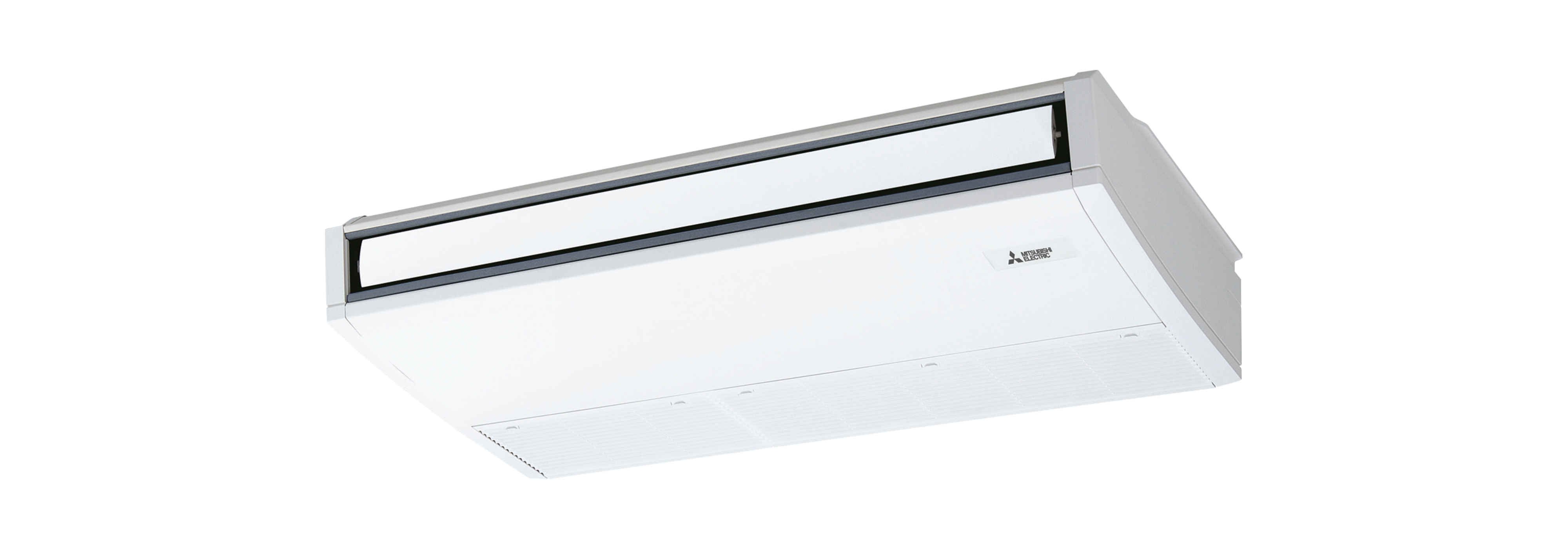

PCA-M50KA

Heating capacity: 6.0 kW
Cooling capacity: 5.0 kW
Dimension: 960 x 680 x 230 mm

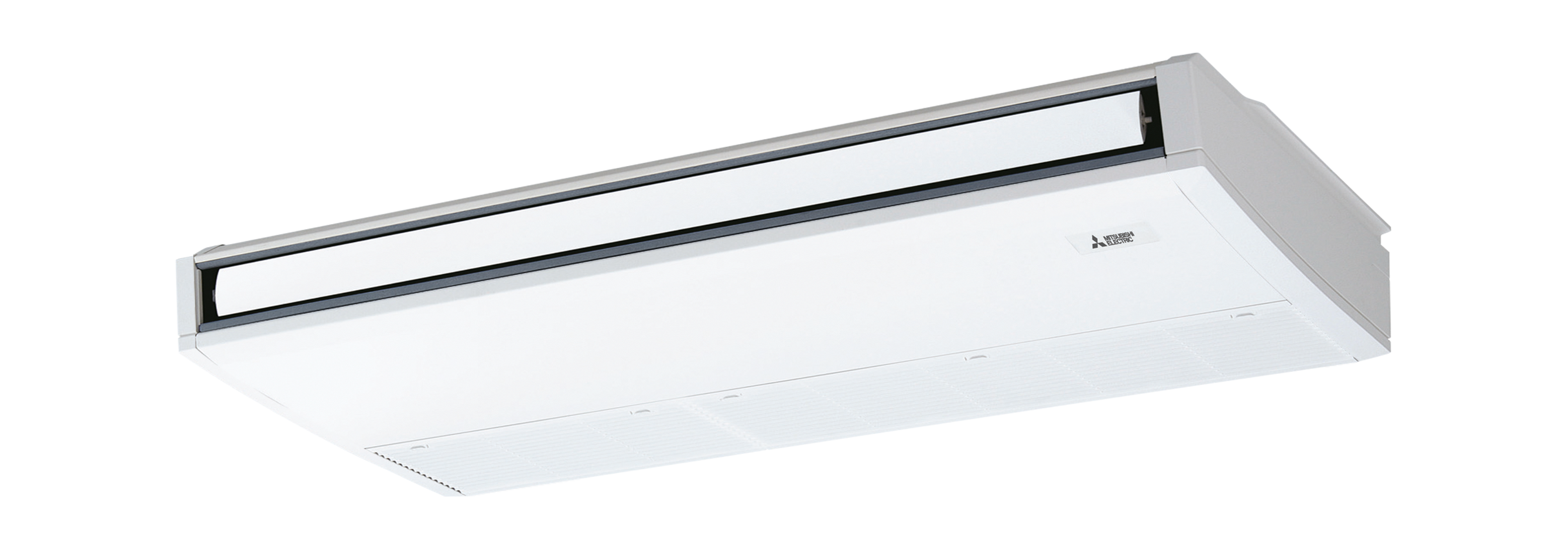

PCA-M60KA

Heating capacity: 7.0 kW
Cooling capacity: 6.0 kW
Dimension: 1280 x 680 x 230 mm

PCA-M71KA

Heating capacity: 8.0 kW
Cooling capacity: 7.1 kW
Dimension: 1280 x 680 x 230 mm

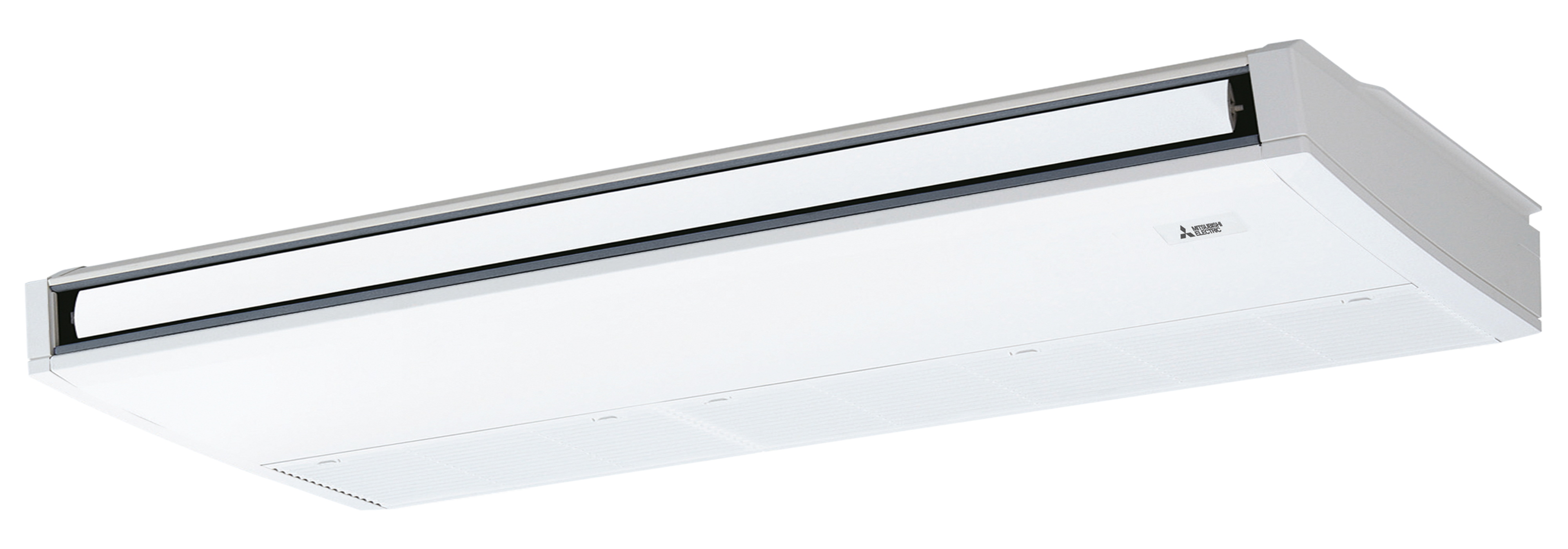

PCA-M100KA

Heating capacity: 11.2 kW
Cooling capacity: 10.0 kW
Dimension: 1600 x 680 x 230 mm

SEZ Series (Ceiling Concealed)

SEZ-M35DA

Heating capacity: 4.0 kW
Cooling capacity: 3.5 kW
Dimension: 990 x 700 x 200 mm

SEZ-M50DA

Heating capacity: 6.0 kW
Cooling capacity: 5.0 kW
Dimension: 990 x 700 x 200 mm

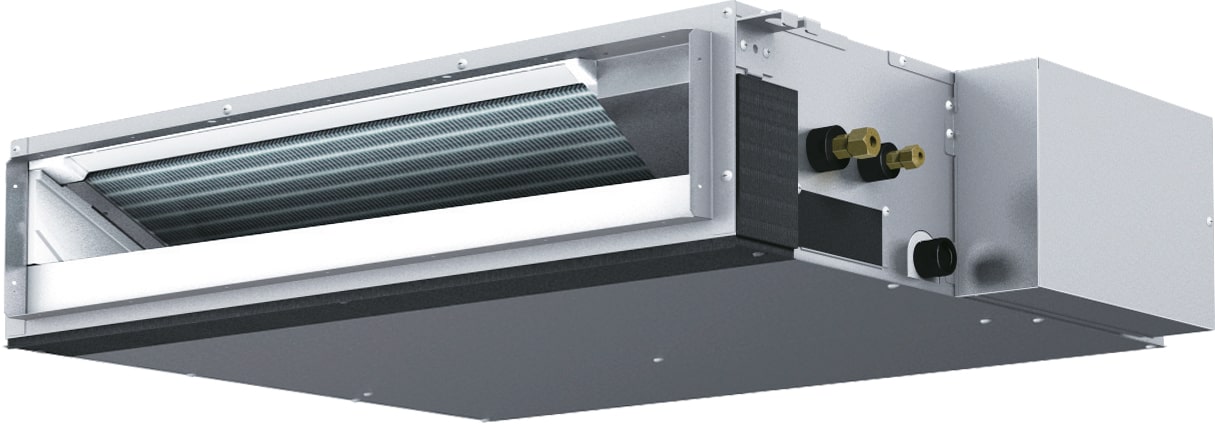

SEZ-M60DA

Heating capacity: 7.0 kW
Cooling capacity: 6.0 kW
Dimension: 1190 x 700 x 200 mm

SEZ-M71DA

Heating capacity: 8.0 kW
Cooling capacity: 7.1 kW
Dimension: 1190 x 700 x 200 mm

OmniCORE Classic Outdoor Units

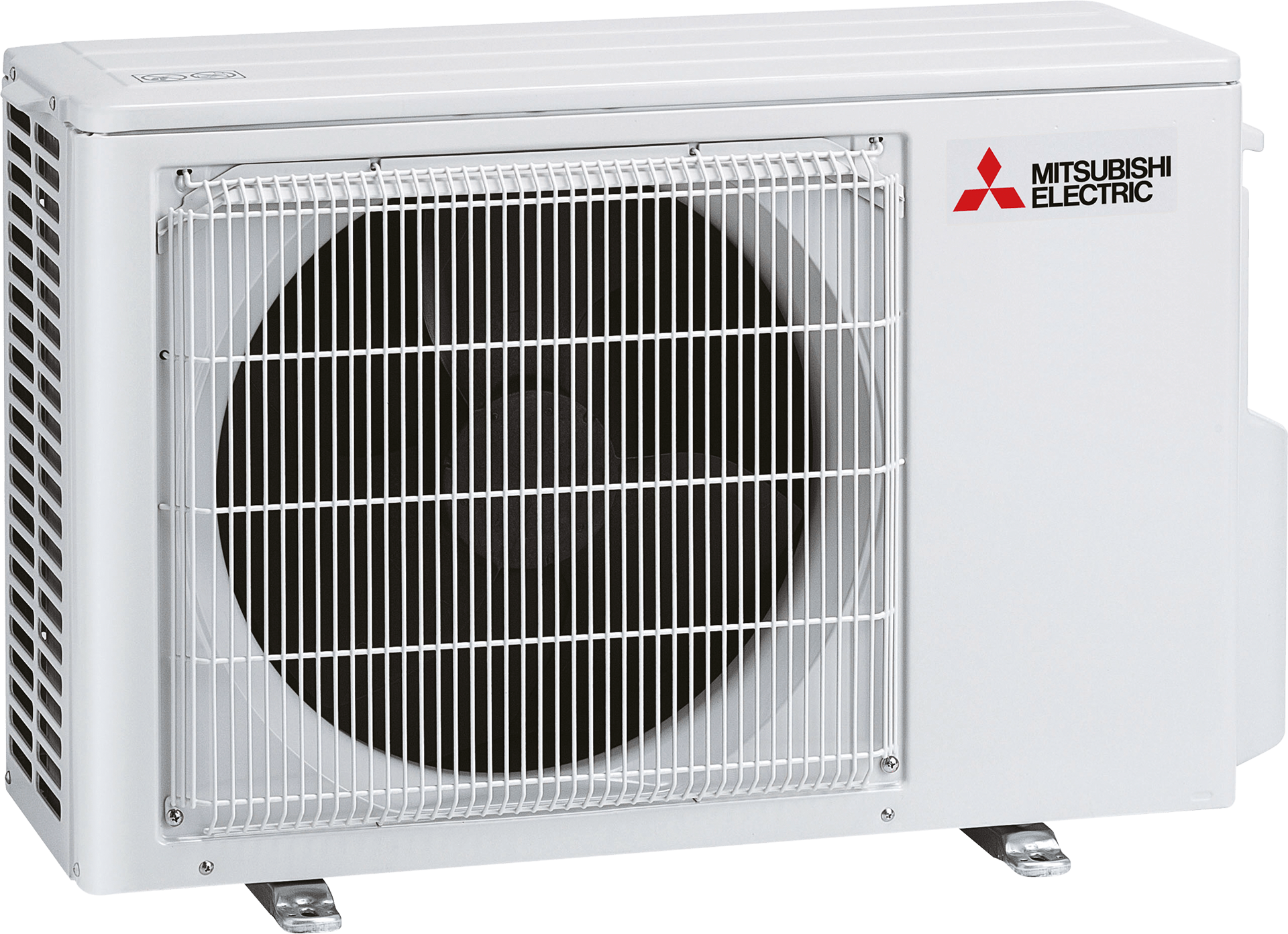

MXZ-2F52VF

Heating capacity: 6.1kW
Cooling capacity: 5.2kW
Dimension: Connect 2 indoors (up to Class 50), with max. class total of 75.

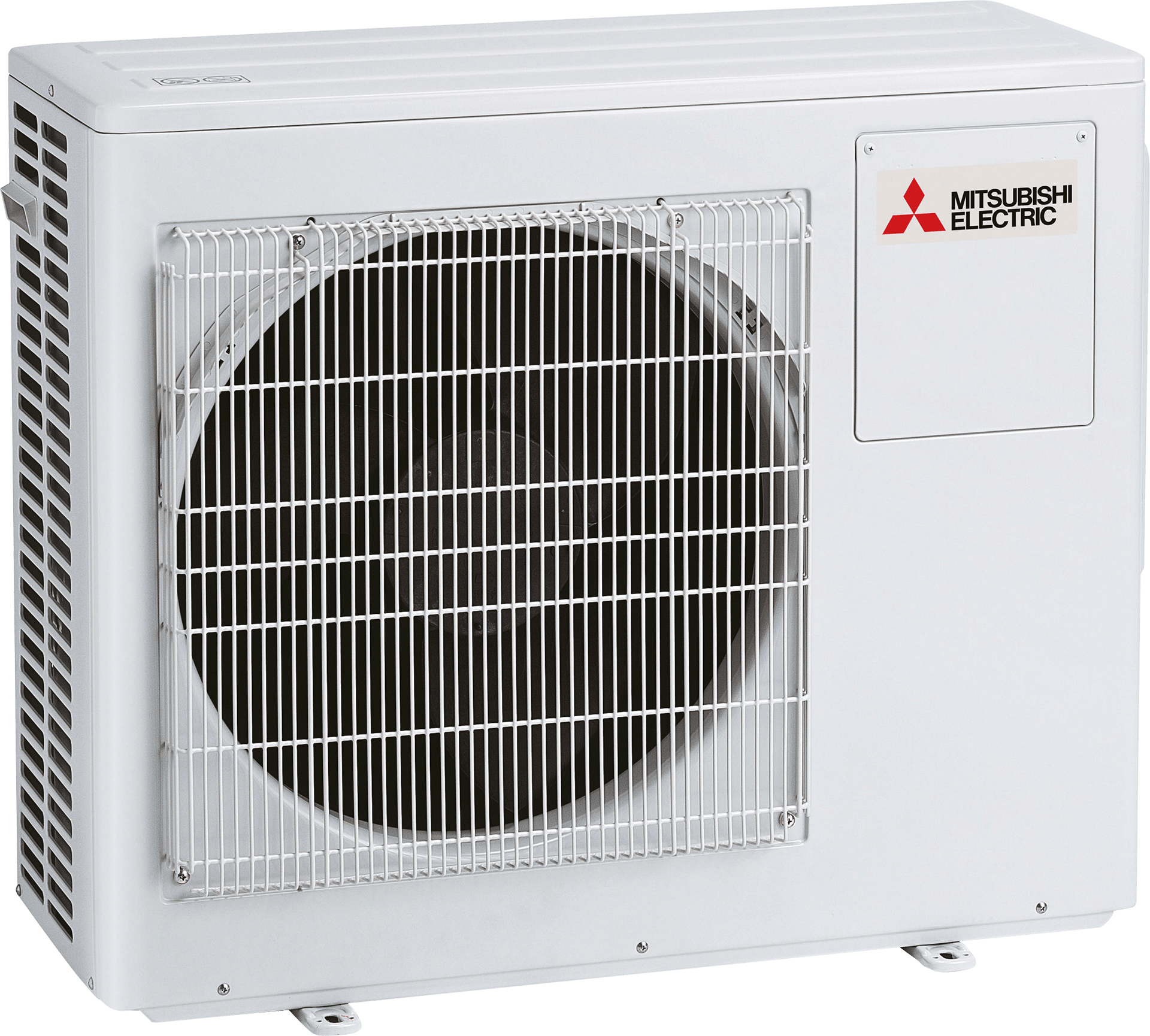

MXZ-3F54VGD

Heating capacity: 7.0 kW
Cooling capacity: 5.4kW
Dimension: Connect 2-3 indoors (up to Class 50), with max. class total of 100.

MXZ-4F71VGD

Heating capacity: 8.0 kW
Cooling capacity: 7.1 kW
Dimension: Connect 2-4 indoors (up to Class 60), with max. class total of 125.

MXZ-4F80VGD

Heating capacity: 8.8kW
Cooling capacity: 8.0kW
Dimension: Connect 1-4 indoors (up to Class 71), with max. class total of 145.

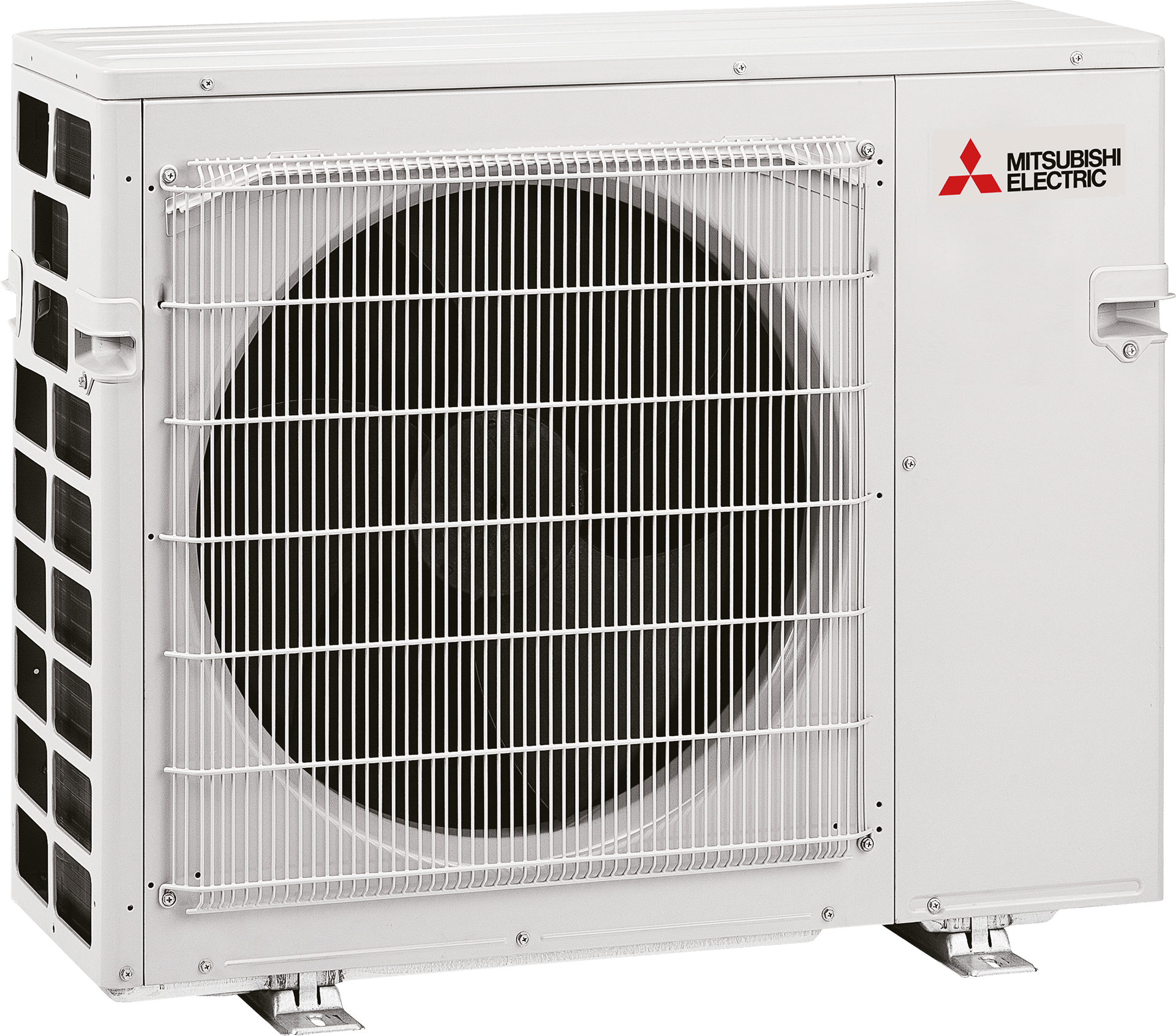

MXZ-5F100VGD

Heating capacity: 10.0kW
Cooling capacity: 10.0kW
Dimension: Connect 1-5 indoors (up to Class 71), with max. class total of 171.

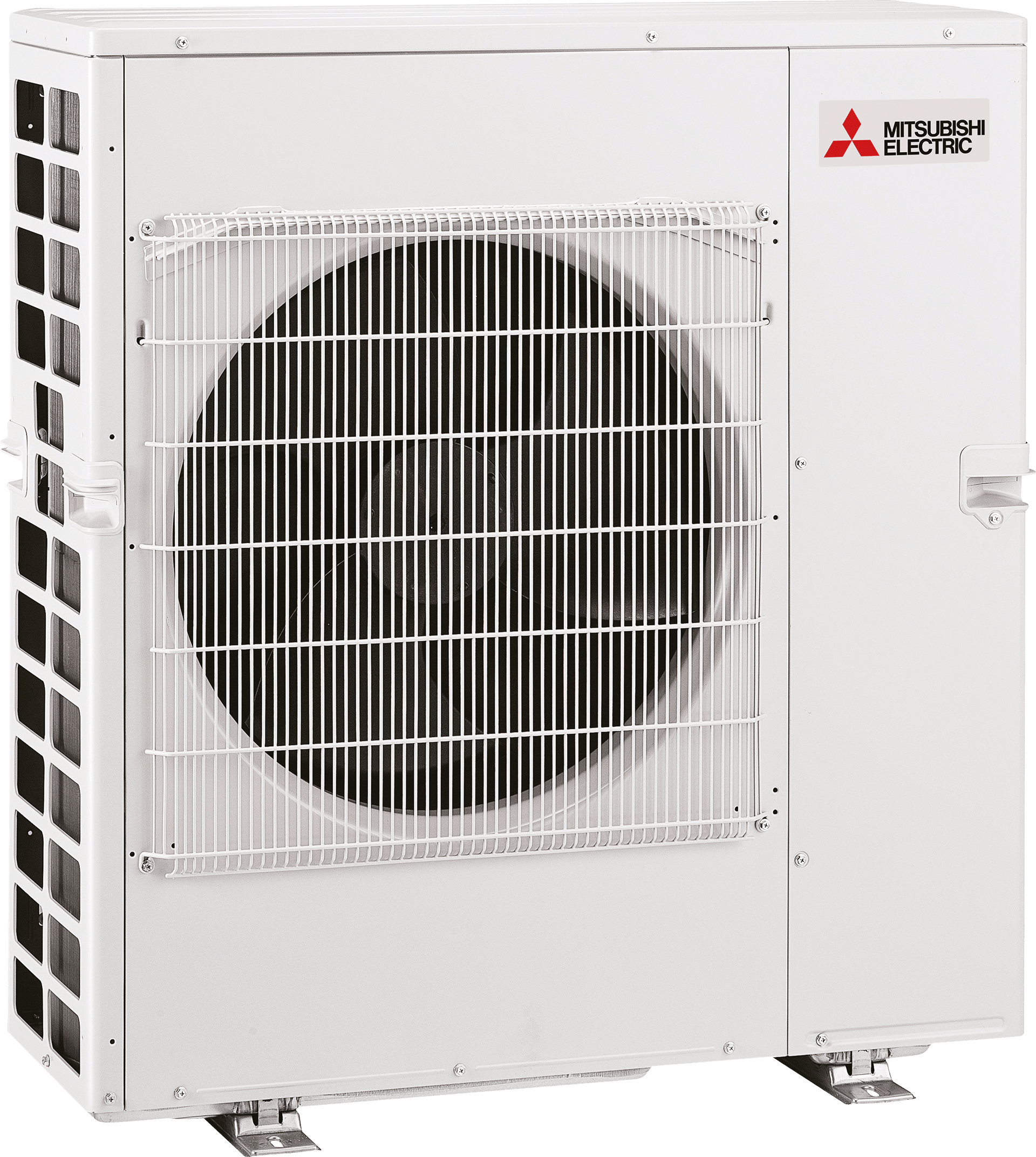

MXZ-6F120VGD

Heating capacity: 13.2kW
Cooling capacity: 12.0kW
Dimension: Connect 1-6 indoors (up to Class 80), with max. class total of 180.

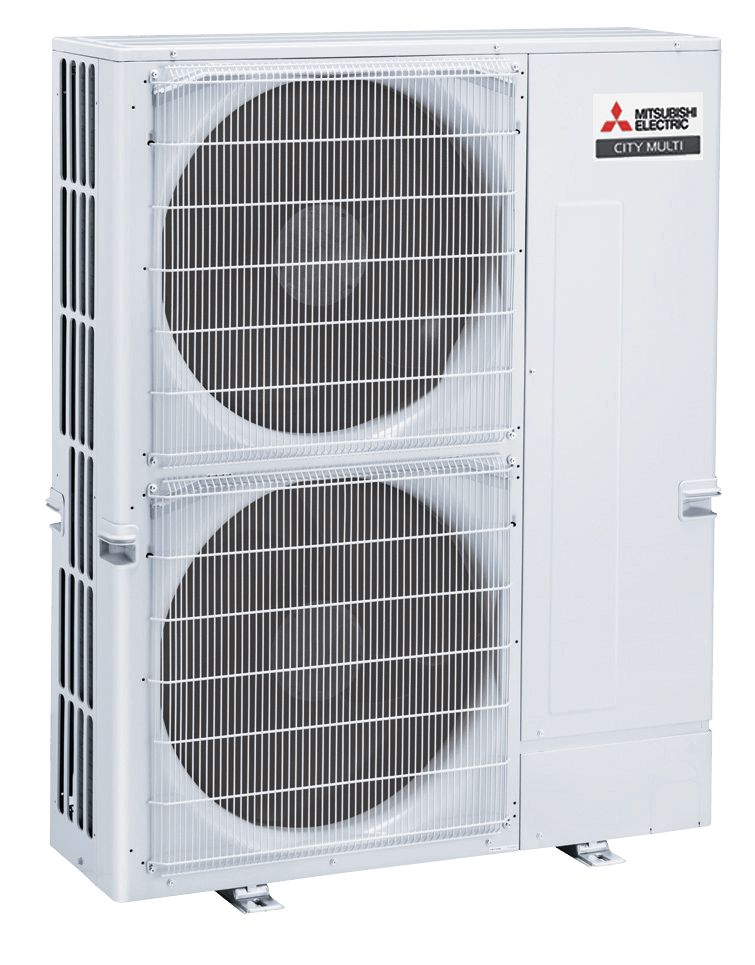

PUMY-SP80VKMD2

Heating capacity: 10.0kW
Cooling capacity: 9.0kW
Dimension: Connect 2 to 7 indoors (up to Class 100), with max. class total of 117.

PUMYSP112VKMD2

Heating capacity: 14.0kW
Cooling capacity: 12.5kW
Dimension: Connect 2 to 8 indoors (up to Class 100), with max. class total of 162.

PUMYSP125VKMD2

Heating capacity: 16.0kW
Cooling capacity: 14.0kW
Dimension: Connect 2 to 8 indoors (up to Class 100), with max. class total of 182.

PUMYSP140VKMD2

Heating capacity: 16.5kW
Cooling capacity: 15.5kW
Dimension: Connect 2 to 8 indoors (up to Class 100), with max. class total of 202.

AP Classic & Plus Series Indoor Units

MSZ-AP25VG(K)D

Heating capacity: 3.2 kW
Cooling capacity: 2.5 kW
Dimension: 798 x 219 x 299 mm

MSZ-AP35VG(K)D

Heating capacity: 3.7 kW
Cooling capacity: 3.5 kW
Dimension: 798 x 219 x 299 mm

MSZ-AP42VG(K)D

Heating capacity: 5.4 kW
Cooling capacity: 4.2 kW
Dimension: 798 x 219 x 299 mm

MSZ-AP50VG(K)D

Heating capacity: 6.0 kW
Cooling capacity: 5.0 kW
Dimension: 798 x 219 x 299 mm

MSZ-AP60VG(K)D

Heating capacity: 6.8 kW
Cooling capacity: 6.0 kW
Dimension: 1100 x 257 x 325 mm

MSZ-AP71VG(K)D

Heating capacity: 8.0 kW
Cooling capacity: 7.1 kW
Dimension: 1100 x 257 x 325 mm

MSZ-AP80VG(K)D

Heating capacity: 9.0 kW
Cooling capacity: 7.8 kW
Dimension: 1100 x 257 x 325 mm

AP Mini Series Indoor Units

MSZ-AP15VGD

Heating capacity: 1.7kW
Cooling capacity: 1.5 kW
Dimension: 760 x 178 x 250 mm

MSZ-AP20VGD

Heating capacity: 2.5 kW
Cooling capacity: 2.0 kW
Dimension: 760 x 178 x 250 mm

RapidHeat KW (Floor Console) Indoor Units

MFXZ-KW25VG

Heating capacity: 3.4 kW
Cooling capacity: 2.5 kW
Dimension: 750 x 215 x 600 mm

MFXZ-KW35VG

Heating capacity: 4.3 kW
Cooling capacity: 3.5 kW
Dimension: 750 x 215 x 600 mm

MFXZ-KW42VG

Heating capacity: 5.4 kW
Cooling capacity: 4.2 kW
Dimension: 750 x 215 x 600 mm

MFXZ-KW50VG

Heating capacity: 5.8 kW
Cooling capacity: 5.0 kW
Dimension: 750 x 215 x 600 mm

EcoCore EF Designer Series

MSZ-EF25VGKW/B/S

Heating capacity: 3.2 kW
Cooling capacity: 2.5 kW
Dimension: 885 x 195 x 299 mm

MSZ-EF35VGKW/B/S

Heating capacity: 4.0 kW
Cooling capacity: 3.5 kW
Dimension: 885 x 195 x 299 mm

MSZ-EF42VGKW/B/S

Heating capacity: 5.4 kW
Cooling capacity: 4.2 kW
Dimension: 885 x 195 x 299 mm

MSZ-EF50VGKW/B/S

Heating capacity: 5.8 kW
Cooling capacity: 5.0 kW
Dimension: 885 x 195 x 299 mm

MLZ Series (One-Way Ceiling Cassette) Indoor Units

MLZ-KP25VF

Heating capacity: 3.2 kW
Cooling capacity: 2.5 kW
Unit: 1102 x 360 x 185 mm Panel: 1200 x 424 x 24 mm

MLZ-KP35VF

Heating capacity: 4.1 kW
Cooling capacity: 3.5 kW
Unit: 1102 x 360 x 185 mm Panel: 1200 x 424 x 24 mm

MLZ-KP50VF

Heating capacity: 6.0 kW
Cooling capacity: 5.0 kW
Unit: 1102 x 360 x 185 mm Panel: 1200 x 424 x 24 mm

SLZ Series (Compact Ceiling Cassette) Indoor Units

SLZ-M25FA-A

Heating capacity: 3.0 kW
Cooling capacity: 2.5 kW
Unit: 570 x 570 x 245 mm Panel: 625 x 625 x 10 mm

SLZ-M35FA-A

Heating capacity: 4.0 kW
Cooling capacity: 3.5 kW
Unit: 570 x 570 x 245 mm Panel: 625 x 625 x 10 mm

SLZ-M50FA-A

Heating capacity: 5.0 kW
Cooling capacity: 5.0 kW
Unit: 570 x 570 x 245 mm Panel: 625 x 625 x 10 mm

PLA Series (Ceiling Cassette) Indoor Units

PLA-M71EA-A

Heating capacity: 8.0 kW
Cooling capacity: 7.1 kW
Unit: 840 x 840 x 258 mm Panel: 950 x 950 x 40 mm

PLA-M100EA-A

Heating capacity: 11.2 kW
Cooling capacity: 10.0 kW
Unit: 840 x 840 x 298 mm Panel: 950 x 950 x 40 mm

PFFY Series (Concealed Floor Console) Indoor Units

PFFY-P20VLRMM-E

Heating capacity: 2.5 kW
Cooling capacity: 2.2 kW
Dimension: 886 x 220 x 639 mm

PFFY-P25VLRMM-E

Heating capacity: 3.2 kW
Cooling capacity: 2.8 kW
Dimension: 886 x 220 x 639 mm

PFFY-P32VLRMM-E

Heating capacity: 4.0 kW
Cooling capacity: 3.6 kW
Unit: 886 x 220 x 639 mm

PFFY-P40VLRMM-E

Heating capacity: 5.0 kW
Cooling capacity: 4.5 kW
Dimension: 886 x 220 x 639 mm

PFFY-P50VLRMM-E

Heating capacity: 6.3 kW
Cooling capacity: 5.6 kW
Dimension: 886 x 220 x 639 mm

PFFY-P63VLRMM-E

Heating capacity: 8.0 kW
Cooling capacity: 7.1 kW
Unit: 886 x 220 x 639 mm

SEZ Series (Ceiling Concealed) Indoor Units

SEZ-M35DA

Heating capacity: 4.0 kW
Cooling capacity: 3.5 kW
Dimension: 990 x 700 x 200 mm

SEZ-M50DA

Heating capacity: 6.0 kW
Cooling capacity: 5.0 kW
Dimension: 990 x 700 x 200 mm

SEZ-M60DA

Heating capacity: 7.0 kW
Cooling capacity: 6.0 kW
Unit: 1190 x 700 x 200 mm

SEZ-M71DA

Heating capacity: 8.0 kW
Cooling capacity: 7.1 kW
Dimension: 1190 x 700 x 200 mm

PEFY VMX Series (Ducted) Indoor Units

PEFY-P20VMX-E

Heating capacity: 2.5 kW
Cooling capacity: 2.2 kW
Dimension: 698 x 450 x 200 mm

PEFY-P25VMX-E

Heating capacity: 3.2 kW
Cooling capacity: 2.8 kW
Dimension: 698 x 450 x 200 mm

PEFY-P32VMX-E

Heating capacity: 4.0 kW
Cooling capacity: 3.6 kW
Unit: 698 x 450 x 200 mm

PEFY-P40VMX-E

Heating capacity: 5.0 kW
Cooling capacity: 4.5 kW
Dimension: 698 x 450 x 200 mm

PEAD Series (Ducted) Indoor Units

PEAD-M50JAA

Heating capacity: 6.0 kW
Cooling capacity: 5.0 kW
Dimension: 900 x 732 x 250 mm

PEAD-M60JAA

Heating capacity: 7.0 kW
Cooling capacity: 6.0 kW
Dimension: 1100 x 732 x 250 mm

PEAD-M71JAA

Heating capacity: 8.0 kW
Cooling capacity: 7.1 kW
Unit: 1100 x 732 x 250 mm

PEAD-M100JAA

Heating capacity: 11.2 kW
Cooling capacity: 10.0 kW
Dimension: 1400 x 732 x 250 mm

PCA Series (Under-Ceiling) Indoor Units

PCA-M50KA

Heating capacity: 6.0 kW
Cooling capacity: 5.0 kW
Dimension: 960 x 680 x 230 mm

PCA-M60KA

Heating capacity: 7.0 kW
Cooling capacity: 6.0 kW
Dimension: 1280 x 680 x 230 mm

PCA-M71KA

Heating capacity: 8.0 kW
Cooling capacity: 7.1 kW
Unit: 1280 x 680 x 230 mm

PCA-M100KA

Heating capacity: 11.2 kW
Cooling capacity: 10.0 kW
Dimension: 1600 x 680 x 230 mm

mitsubishi air con

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua.

mitsubishi electric

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua.

mitsubishi electric

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua.

mitsubishi electric

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua.

mitsubishi electric

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua.

mitsubishi electric

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua.

mitsubishi electric

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua.

mitsubishi electric

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua.
